Understanding SSH Port Forwarding: Your Complete Guide Explained

by Ashila Antony
SSH Port Forwarding: A Comprehensive Guide

In the realm of secure communication and remote server management, SSH (Secure Shell) stands out as a fundamental tool. While SSH is often associated with remote server access, it has a lesser-known but incredibly powerful feature called SSH Port Forwarding. This feature allows users to securely forward traffic from one machine to another, making it invaluable for securely accessing remote services, bypassing firewalls, or creating encrypted tunnels.

This blog covers an in-depth look at SSH Port Forwarding, its types, practical use cases, and detailed steps to configure it.

 What is SSH Port Forwarding?

SSH Port Forwarding, also known as SSH Tunneling, is a technique that routes network traffic through an SSH connection. By encrypting this traffic, it ensures secure communication between the client and the destination server. SSH Port Forwarding is commonly used to:

  •  Access services behind firewalls or NAT.
  •  Securely connect to internal resources of a private network.
  •  Encrypt data in transit to prevent interception by malicious actors.

 Types of SSH Port Forwarding

 SSH Port Forwarding comes in three main types, each serving distinct use cases:

  1. Local Port Forwarding
  •  Redirects traffic from a local machine to a remote server through an SSH tunnel.
  •  Ideal for accessing a service running on a remote server via a local port.

 Example: Accessing a remote MySQL database from your local machine.

  1. Remote Port Forwarding
  •  Allows a remote server to forward its traffic to a local machine through the SSH connection.
  •  Useful when making local resources accessible to a remote server.

 Example: Allowing a remote server to access a web application running on your local machine.

  1. Dynamic Port Forwarding
  •  Creates a SOCKS proxy to dynamically forward traffic to multiple destinations.
  •  Perfect for accessing multiple services behind a firewall.

 Example: Using it to browse the internet securely through an SSH tunnel.

 Use Cases for SSH Port Forwarding

  • Secure Database Access: Safely connect to a database on a remote server without exposing it to the public internet.
  • Bypass Firewalls: Access services that are blocked or restricted by corporate firewalls or ISPs.
  • Encrypted Communication: Ensure sensitive data is encrypted while traveling across public or unsecured networks.
  • Remote Debugging: Debug applications on a remote server by tunneling traffic to your local development environment.

 Configuring SSH Port Forwarding

Here’s how to configure each type of SSH Port Forwarding:

 1. Local Port Forwarding

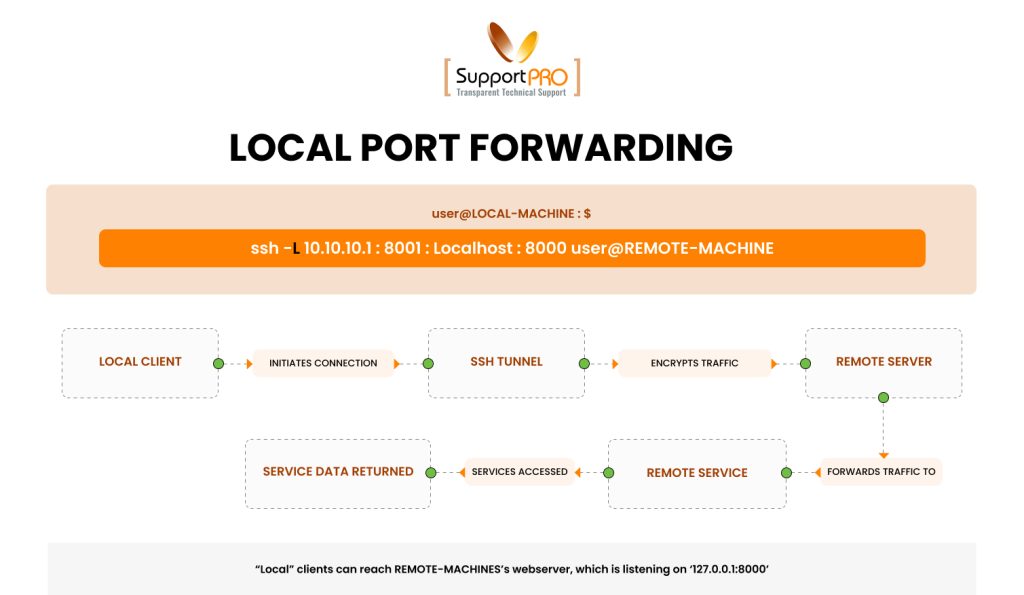

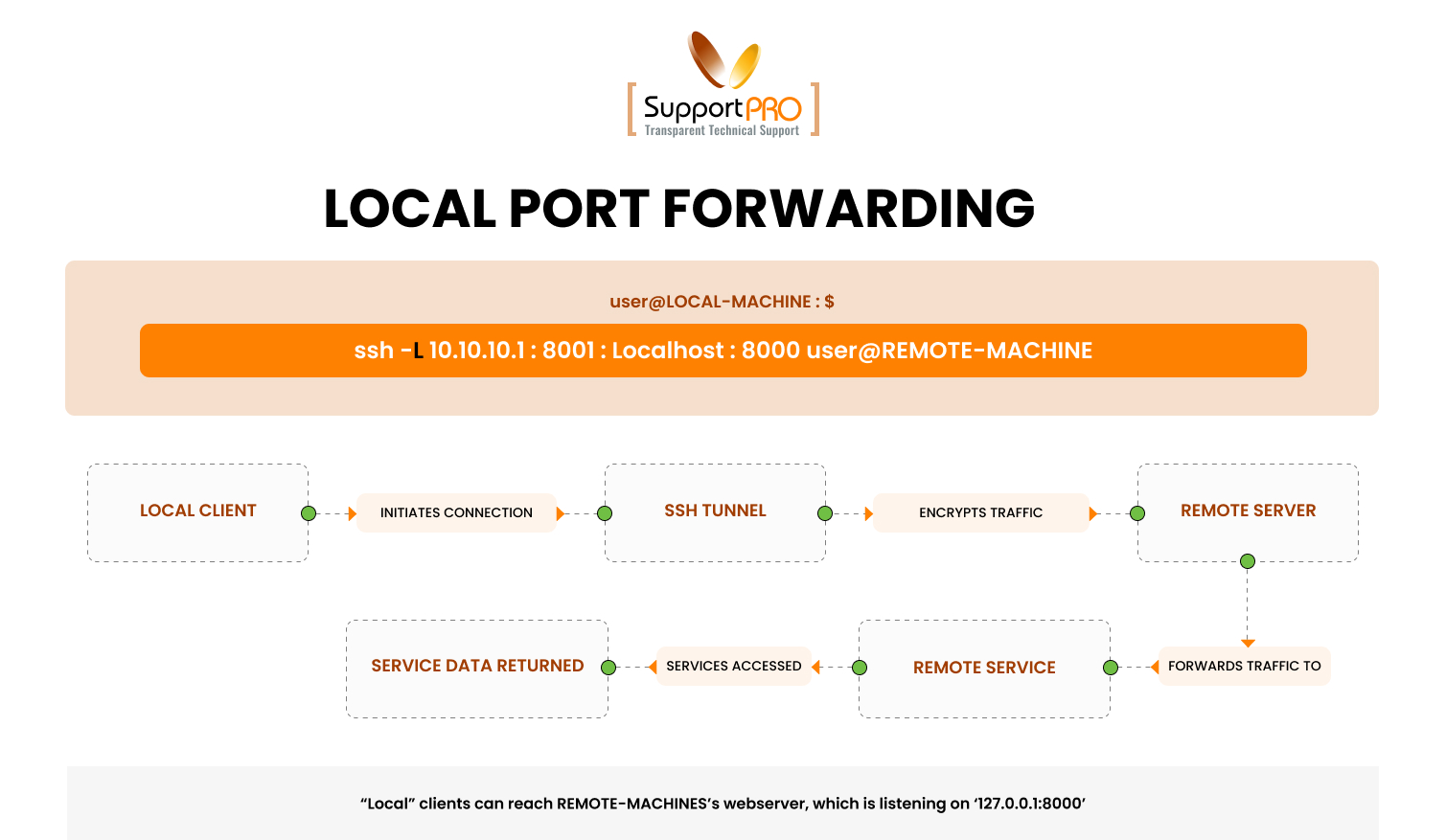

Local Port Forwarding.

 To set up local port forwarding, use the following command:

 ssh -L:: @

  • <local_port>: The local port where traffic will be forwarded.
  • <remote_host>: The remote host to which traffic will be directed.
  •  <remote_port>: The port of the service on the remote host.

Example: Forwarding local port 8080 to access a web service running on port 80 of a remote server:

 ssh -L 8080:localhost:80 user@remote_server

 Once configured, you can access the service at http://localhost:8080 in your browser.

 2. Remote Port Forwarding

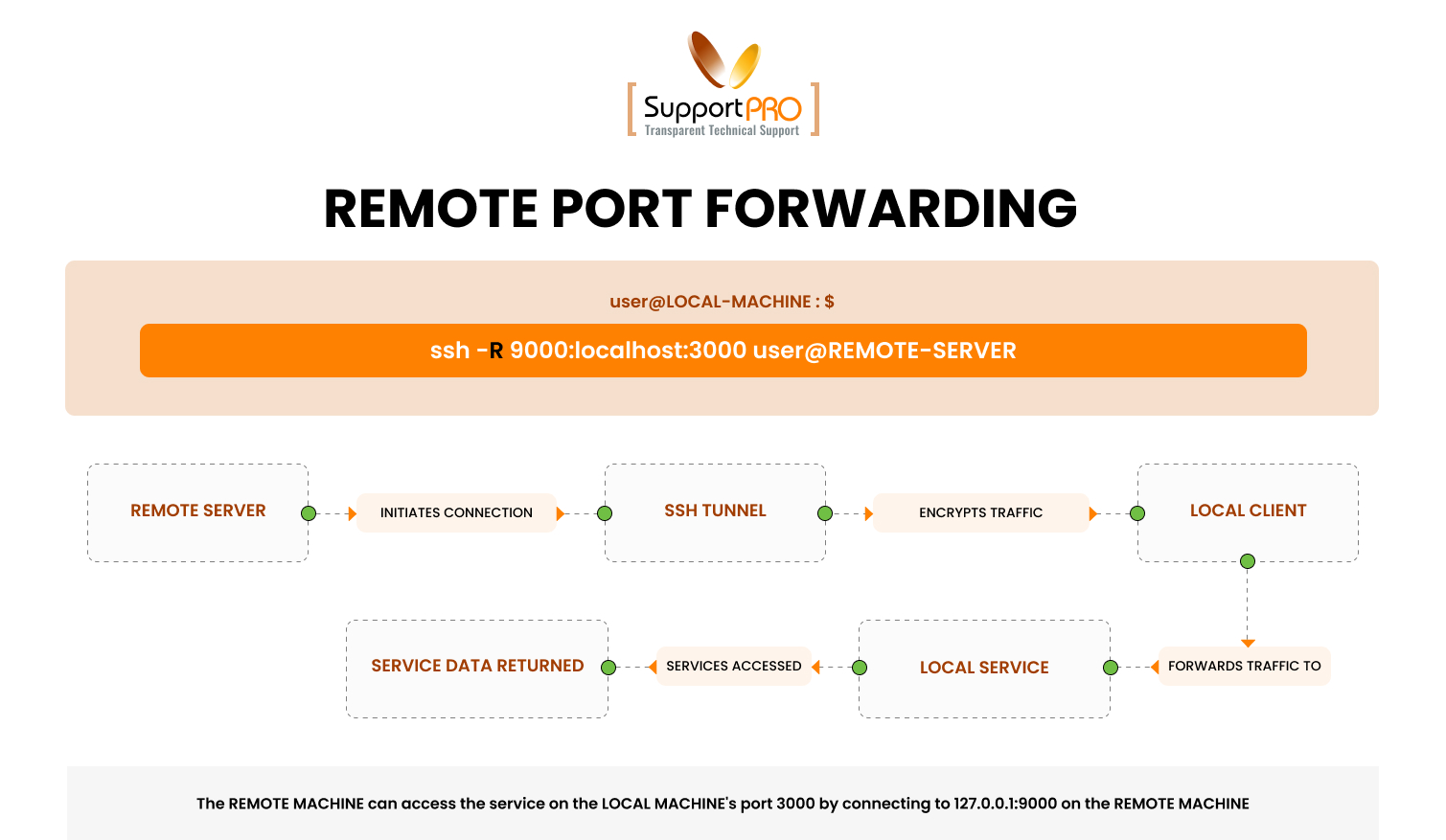

Remote Port Forwarding

 To configure remote port forwarding, use the following command:

 ssh -R:: @

  • <remote_port>: The port on the remote server where traffic will be forwarded.
  • <local_host>: The local host providing the service.
  • <local_port>: The port of the service on your local machine.

Example: Allowing a remote server to access a web application running on port 3000 of your local machine:

  ssh -R 9000:localhost:3000 user@remote_server

 The remote server can now access your application at http://localhost:9000.

 3. Dynamic Port Forwarding

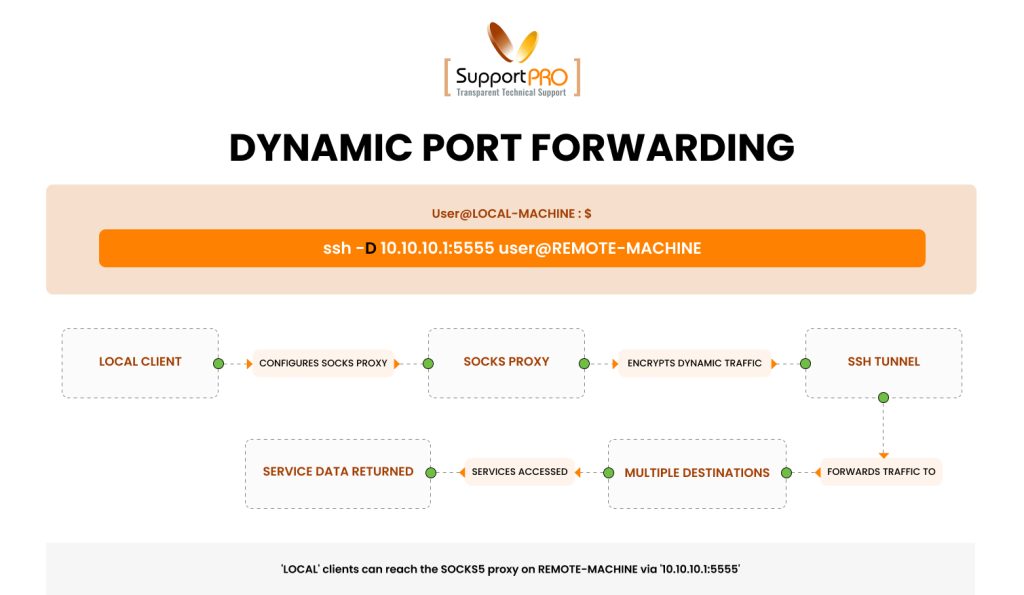

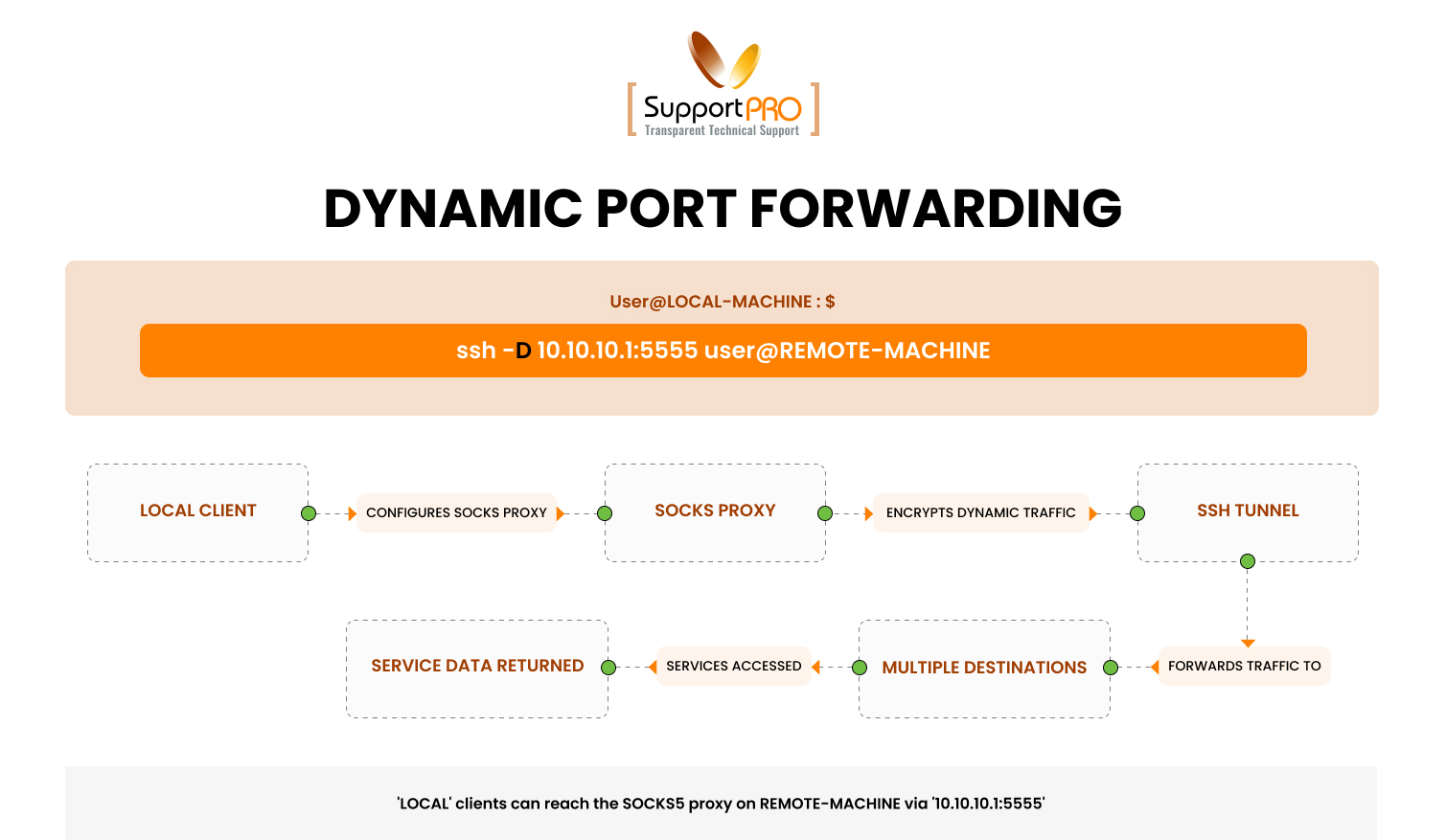

Dynamic Port Forwarding

 To enable dynamic port forwarding, use the following command:

 ssh -D  @

  • <local_port> : The local port where the SOCKS proxy will listen.

Example: Creating a SOCKS proxy on port 1080 to securely browse the web:

  ssh -D 1080 user@remote_server

 Configure your web browser or application to use localhost:1080 as a SOCKS proxy.

 Tips for Effective SSH Port Forwarding

1. Use SSH Config Files:

Simplify SSH commands by creating an entry in the ~/.ssh/config file:

 Host myserver

 HostName remote_server

 User user

 LocalForward 8080 localhost:80

 Connect with:

  ssh myserver

2.  Security Best Practices:

  •  Use strong SSH keys for authentication.
  •  Restrict port forwarding in the SSH configuration file (/etc/ssh/sshd_config) if not needed.

3.  Test Your Connections:

Verify the tunnel using tools like telnet or curl.

 Conclusion

SSH Port Forwarding is an indispensable, secure, flexible, and efficient network management tool. SSH Port Forwarding provides a reliable solution whether you’re accessing remote services, bypassing firewalls, or encrypting your communication. By understanding its types and configuration methods, you can unlock its full potential and ensure safe interactions across your network.
